Chucker Machines

The Davenport five-spindle chucking machine is designed for medium- and high-volume secondary operation work on parts up to 2 1/4” diameter.

Significantly progressive in its adaptability to specific jobs, the Chucker version of the Davenport machine is used for secondary operations.

Optimum machining flexibility is provided through 9 tooling positions, while common operations such as; cross drill, cross tap, thread roll, mill, and slot can be complete using standard Davenport attachments.

Index time is as little as 0.4 seconds. Quick index & cycle time teamed with unparalleled machining…has allowed Davenport to be the most economical chucking machine available today.

Most tooling and attachments used on the Davenport Model B Bar Machine can also be used on the Chucker.

What Makes the High Precision Chucker Innovative?

Davenport Machine & (MIC) teamed up to develop of the High Precision Chucker, utilizing innovations from MIC along with elements from Davenport High Precision Head, providing precision and durability.

Inside our High Precision Chucker Brochure, you’ll learn the features and benefits that the Chucker and its automation capabilities bring to the following industries:

Get Access to the Brochure

New Machine
Oversize or Regular Capacity
Cycle Index 75, 60, or 45 Cycle
Threading attachment option
10 Hp Main Drive Motor
Electrics (Please specify voltage required)
Motorized Bijur System
Center Drive with Standard Gear
Double Action Chip Conveyor
1st and 2nd Position Tool Posts and Cross Slides
3rd Position Cross Slide Option
Optional 3rd Position Cross Slide Available at Additional Cost

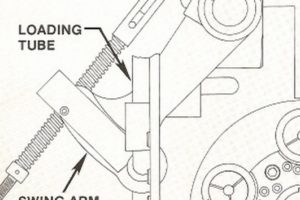

Loading & Ejecting Options
Sound enclosure with interlocking doors
Considering a remanufacture? Chucker remanufacture includes:
Stationary Head
Revolving Head
Inner and Outer Revolving Spindles with Bronze Bearings
Ring Gear
Barrel Chucking on Work Spindles, Burring Spindles, High-speed Clutch, and Starting Clutch
1st and 2nd Position Cross Slides using CJWinter 132 EG Reversible Slides
Stationary Tool Spindles and Boxes
Main Bearings and Bushings
Lubrication System with Motorized Pump
Capacity
Regular capacity of feed tubes
9/16″ round, 1/2″ hexagon and 3/8″ square. Special feed tubes with feed fingers soldered in can be furnished to take a stock up to 5/8″ round, 9/16″ hexagon and 7/16″ square
Longest length fed
3″
Longest length turned
2 1/2″
Number of changes of spindle speeds
27
Range of spindle speeds
500 – 4,500 RPM
Number of changes of feeds
60
Speeds
Driving shaft
1,500 RPM
Hand wheel shaft
750 RPM
Indexing head, feeding stock, etc.
4/10 second constant

When cutting steel the threading spindle revolves in the same direction as the work spindle at a ratio of 3 to 4 while threading tool is running to work and 3 to 2 while running off.

When threading on brass work the threading spindle is stopped when tool is running on but revolves twice the speed of the work spindle to run off.
First feed change gear shaft
200
Ratio of worm and wheel
60 to 6
Size of Equipment
Diameter of circular tools
2″
Diameter of hole in tool spindle
3/4″
Outside diameter of tool spindle
1 3/8″
Least distance between chuck and tool spindle
2 1/8″
Greatest distance between chuck and tool spindle
4 13/16″
Diameter of long feed cams
7 1/2″
Diameter of cross feed cams
6″
Thickness of cams
3/8″
Equipment
Cams
9
Spindle change gears
2
Feed change gears
1
Threading gears
2
Set of wrenches and screwdrivers
1
Motor Drive
Machine designed for motor drive 10 H.P., 1,800 RPM. Motor and all electrical controls are extra.
Floor Space
39″ x 61″. Distance from top spindle to floor is 44 1/2″.
Dimensions and Weight
Size crate
60″ W x 112″ L x 96″ H
Net weight
3,600 lbs (domestic or foreign)
Gross weight
3,800 lbs (domestic / crated)
4,000 lbs (foreign / boxed)
Color
Machine Tool Builders Association Standard Gray
