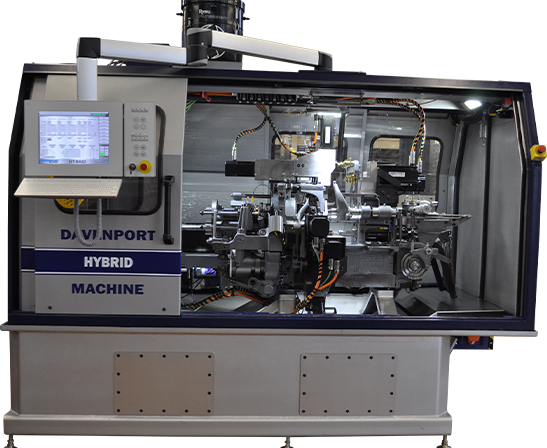

Machine With Doors Open

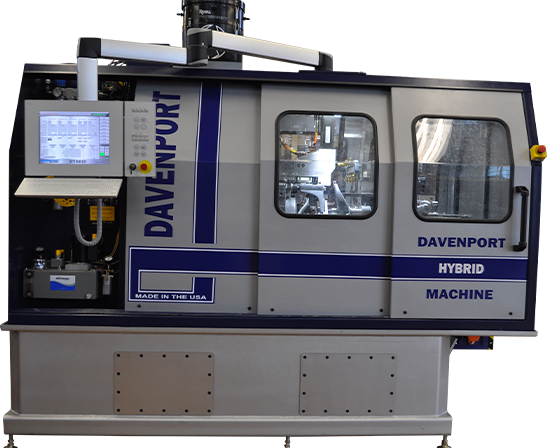

Machine With Doors Closed

Hybrid Machine Design Features

The new Davenport Hybrid incorporates the best of the mechanical versatility you’ve come to expect from Davenport, and adds to it the CNC Technology you need to address today’s most difficult manufacturing challenges.

Open the doors and take a look inside the machine at some of the design enhancements we’ve applied to increase profitability and productivity for our customers.

*Slide the marker to reveal the features

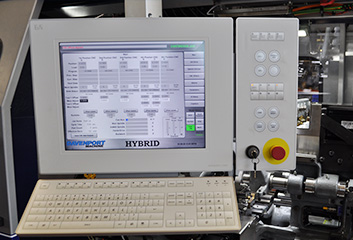

Next Generation Controls

  • 15” color touchscreen
  • Full QWERTY keyboard
  • Dedicated function buttons
  • Remote hand wheel
  • User friendly control screens w/ easy workflows
  • Offset size for each spindle and tool position INDEPENDENTLY
  • Digital adjustment in .0001” increments
  • “One Touch” tool wear size adjustment changes part size for all 5 spindles

Next Generation Controls

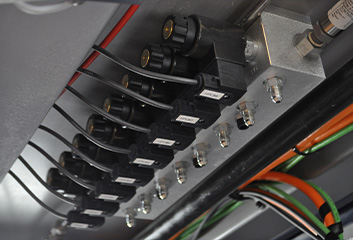

High Pressure Coolant

  • ChipBlaster high-pressure coolant pumps
  • Up to 1000 PSI & 10.5 GPM
  • Ceiling mounted 8-port programmable manifold
  • High-pressure ready tooling
  • Revolving & stationary drill spindles
  • Form and Cutoff tool holders
  • Faster speeds & feeds, shorter cycles, better chip control, longer tool life

High Pressure Coolant

LED Lighting

  • 4 Powerful LED work lights
  • 2x the light
  • NO shadows

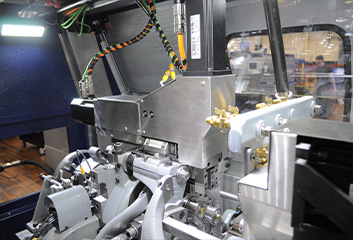

4th Position 2-Axis CNC Slide

  • Single point turning
  • Single point threading
  • Full 2D profiling, chamfer, radii and angle
  • Angular undercuts
  • Boring bar holders for complex internal undercuts and contours
  • Multi-tool holders for OD/ID work combos

4th Position 2-Axis CNC Slide

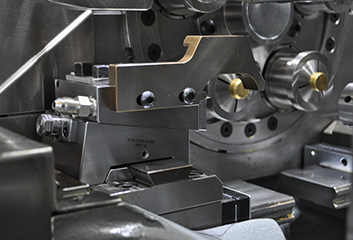

New Tool Holders

  • Optional DTS “Dovetail Tooling System”
  • Modular Hybrid slides available with an integrated dovetail tool holder mount
  • Highly rigid and repeatable tool holders
  • Skive, Form, and 5/8” Stick tool holders for maximum versatility
  • All holders are ported for highly effective thru-tool high-pressure coolant

New Tool Holders

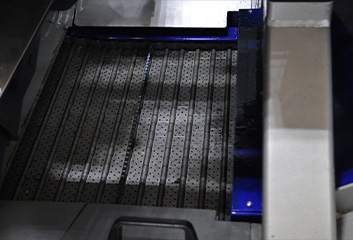

High Volume Chip Conveyor

  • Wide format belt conveyor
  • Perforated or drag-bar style belt options
  • Large drainage area allows for massive 50 GPM oil flow
  • Variable speeds to optimize chip removal
  • Tapered, wash-down style chip pan surfaces

High Volume Chip Conveyor

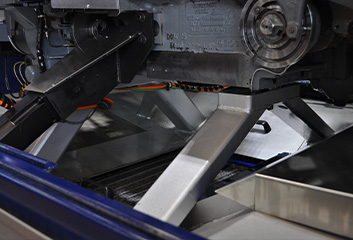

All New Machine Base

  • High Capacity Coolant Tank – 3x larger oil tank, 200 gallon capacity
  • Massive roll-bar style bracing – maximum machine stiffness
  • 360 degree wash-down pan surfaces – longer, unattended runs
  • 2 Huge cartridge filters – max coolant flow, dual pumps
  • Comparable footprint to previous models – less than ½ the size of competitive machines

All New Machine Base

The Davenport Hybrid Machine offers users precision and flexibility in their manufacturing efforts. Simpler setups, faster cycle times, and a conventional Computer Numerical Control (CNC) interface make it easy to integrate the Davenport Hybrid Machine into virtually any workflow. This five-spindle screw machine’s ability to hold tight tolerances, with exceptional accuracy, has been proven via rigorous testing.

The Hybrid Machine takes the best mechanical features of Davenport’s screw machines and integrates them seamlessly, with the precision provided by advanced CNC technology. Features of this multi-spindle screw machine include:

4th Position 2-Axis CNC Slide

Gone are the days of dovetail slides, tapered gibs, and the constant adjustments and quality issues that go along with them. Our new CNC slides are modular in nature, so customers are not limited to using older style Davenport tooling. They are built upon rigid, pre-loaded linear rail technology, like you would expect to find on high-end CNC lathes and mills.

Next Generation Controls

Our new, state of the art, CNC control package boasts a 15-inch, color touchscreen display, engineered for a rugged machine shop environment. The large screen size allows operators to combine multiple pages into a much more user-friendly layout. Color-coded information is easier to absorb than text, and allows us to direct the operators attention to the most vital information quickly.

High Volume Chip Conveyor

The Hybrid boasts a 22” wide chip conveyor belt built into the base pan. The conveyor and pan have been designed as a 360° wash-down system. As chips fall onto the sloped pan surfaces, everything is washed down into the chip load zone of the conveyer by the oil. You’ll get more chips out of your machine without manual intervention, and those chips will be drier.

High-Pressure Coolant

The Hybrid integrates Chip Blaster high-pressure coolant pumps, which deliver up to 10.5 gallons per minute to a ceiling-mounted manifold. The manifold directs coolant to up to 8 tools at any point in the cycle. It’s fully programmable, so coolant is only flowing when the tool is in the cut.

All New Machine Base

Our new and improved machine base has doubled the volume of coolant that the Hybrid Machine can hold, with minimal increase to the machine’s overall footprint. The machine’s mass increased by approximately 25%—roughly 2000 pounds. Integrated structural supports also help improve rigidity and machine dampening.

LED Lighting

The Hybrid features four powerful LED work lights, which allow for 2x the light of other machines, and no shadows to interfere with the operator’s visibility.

New Tool Holders

The Hybrid features a first- and second-position rigid integral mounting dovetail interface. Our setup ensures that all positions are high-pressure coolant ready, and features a carbide insert for form, skive, profiling and cutoff. Our rigid integral mounting dovetail interface also allows for a fully-adjustable center height and taper. Operators may leverage the capability of the adjustable stop for tool positioning.
