Oversize Heads

With oversize head blanks in stock, we can manufacture a revolving or stationary head to your specifications up to .035″ over the original dimension.

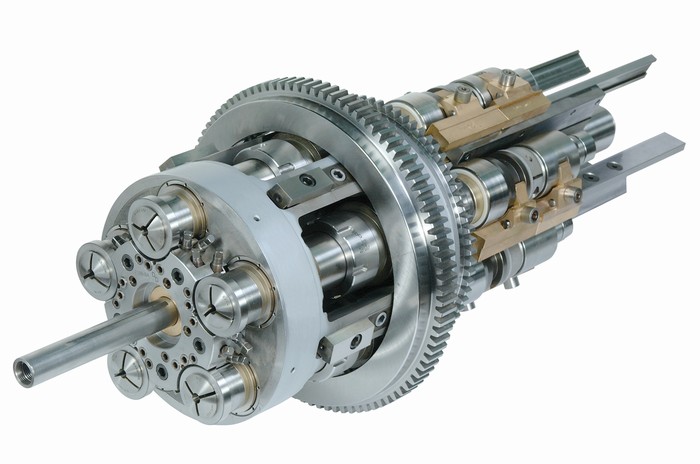

If the bed casting aligning your Davenport’s revolving head becomes worn and you choose to re-bore, as opposed to banding and boring, Davenport can offer you an Oversize Revolving Head.

After you re-bore your machine, it should clean up in the .010″ to .030″ range. You can then call and order the appropriate head dimension.

Davenport Machine has upgraded the inspection department for all OEM parts including the revolving heads. A new Brown & Sharpe CNC Coordinate Measuring Machine has been upgraded to insure repeatability of all OEM parts. A Certificate of Compliance with head serial number is available with all revolving heads purchased – OEM Standard or OEM Oversized.

Tech Tips

How to Check Locating Blocks for Uniform Location

Get a step-to-step guide on checking the locating blocks on the revolving head for block-to-block uniform location without removing the revolving head from the machine.

Both bearing diameter bands are covered by a proprietary metallic hard-coating material
Hard-coated heads retain oil better and reduce friction during index by over 65%
Greatly reduced galling and pick up on the bearing bands due to dissimilar metal interfaces – indexing the revolving head no longer runs a cast iron head on a cast iron bed
Extended life and accuracy of the Davenport Model B or Davenport HP
No visible or measurable wear on the hard-coated heads after 1 million parts produced
No visible wear on the scraped bores
Testing Runs:
No visible or measurable wear on hard-coated heads after producing over 1 million parts in testing run on customer’s machines
Test machine has NO SIGNS OF WEAR on the scraped bores, with the original oil-distribution scores of the scraping bar still evident on 100% of the bore.
No burnishing of high spots was evident at any point in the bores
The head and machine bed looked like the day they were assembled. With good spindles, the machine can make parts as accurately as the first day of operation!
